Hopper Dryer (HD/IHD/DHD)

Classification : Drying & Dehumidifying System

YANN BANG ELECTRICAL MACHINERY CO., LTD.

Country: Taiwan

Phone: ENGLISH: 886-4-2271-0000 | 中文：886-4-22716999

Fax: 886-4-2271-1988

Contact Person: Bunny Tsai

Inquiry Now

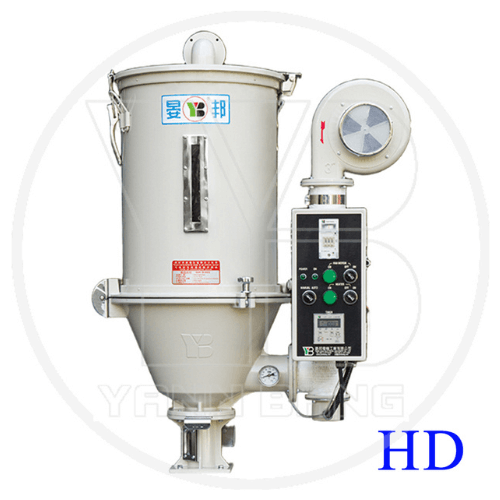

HD Series

Rapid heating.
Constant temperature control.

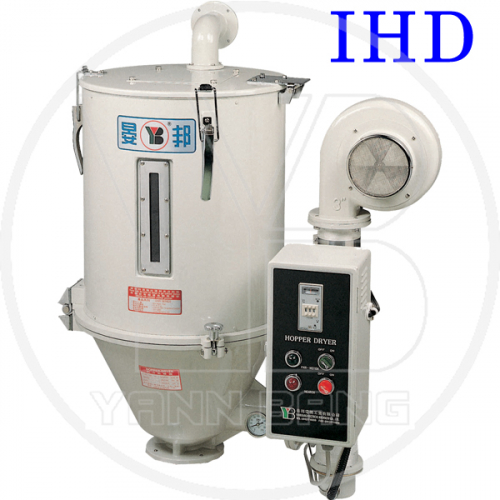

IHD Series

Special insulated design.
Energy saving.
Prevent burns.

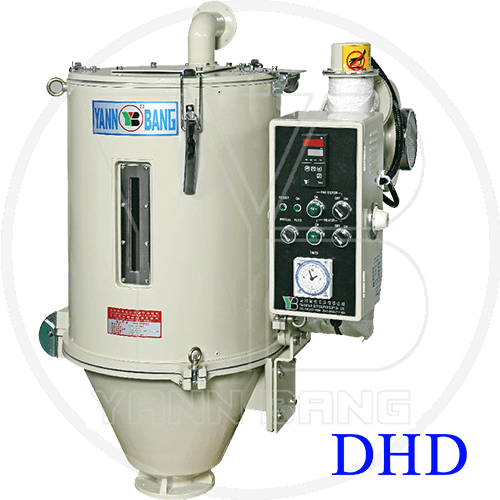

DHD Series

Unique dual chamber design with better insulation.
Dust-free, clean-free and energy save.
The standard DHD model is equipped with timer(T), EGO overheat protector(P),and patented magnetic stand (NSD)

Standard Hopper Dryer (HD)
Model	Capacity (L)	Weight (kg)	A (cm)	B (cm)	C(Φ) (cm)	D (cm)	E(□) (cm)	F(Φ) (cm)	Electricity		Ref.IMM
Model	Capacity (L)	Weight (kg)	A (cm)	B (cm)	C(Φ) (cm)	D (cm)	E(□) (cm)	F(Φ) (cm)	Heater	Fan Motor	Ref.IMM
HD-N12	18	23	80.6	58.0	29.2	12.0	12.0	5.1	2	50	15t
HD-N25	37	32	105.0	66.0	36.5	15.7	15.2	5.1	3	65	50t
HD-N50	74	43	115.0	79.0	44.5	15.7	16.0	6.1	3.9	100	80-100t
HD-N100	147	67	142.5	100.0	55.5	16.0	22.5	7.6	6.5	200	125-350t
HD-N200	294	112	165.0	115.0	75.0	19.0	25.5	10.4	11	300	350-600t
HD- 400	588	211	199.0	142.5	89.5	21.7	32.0	11.4	20	700	600-1060t
HD- 560	824	229	223.5	142.5	89.5	21.7	32.0	11.4	20	700	1060-1360t
HD- 800	1177	253	327.5	142.5	89.5	21.7	32.0	11.4	22	700	1360-1480t

Insulated Hopper Dryer (IHD)
Model	Capacity (L)	Weight (kg)	A (cm)	B (cm)	C (cm)	D (cm)	E(□) (cm)	F(Φ) (cm)	Electricity		Ref.IMM
Model	Capacity (L)	Weight (kg)	A (cm)	B (cm)	C (cm)	D (cm)	E(□) (cm)	F(Φ) (cm)	Heater	Fan Motor	Ref.IMM
IHD-12	18	29	68.8	58.0	27.7	12.0	12.0	5.1	2	50	15t
IHD- 25	37	40	105.0	66.0	36.6	15.7	15.2	5.1	3	65	50t
IHD- 50	74	54	115.0	79.0	46.2	15.7	16.0	6.1	3.9	100	80-100t
IHD-100	147	80	142.5	100.0	59.6	16.0	22.5	7.6	6.5	200	125-350t
IHD- 200	294	130	165.0	115.0	73.2	19.0	25.5	10.4	11	300	350-600t
IHD- 400	588	230	199.0	142.5	89.5	21.7	32.0	11.4	20	700	600-1060t
IHD- 560	824	245	223.5	142.5	89.5	21.7	32.0	11.4	20	700	1060-1360t
IHD- 800	1177	300	327.5	142.5	89.5	21.7	32.0	11.4	22	700	1360-1480t

Dust-free&Insulated Hopper Dryer (DHD)
Model	Capacity (L)	Weight (kg)	A (cm)	B (cm)	C (cm)	D (cm)	E(□) (cm)	F(Φ) (cm)	Electricity		Ref.IMM
Model	Capacity (L)	Weight (kg)	A (cm)	B (cm)	C (cm)	D (cm)	E(□) (cm)	F(Φ) (cm)	Heater	Fan Motor	Ref.IMM
DHD-12N	18	31	80.6	57.4	27.7	11.5	12.0	4.6	2	50	15t
DHD- 25N	37	43	105	67.0	36.6	14.2	16.0	4.9	3	65	50t
DHD- 50N	74	58	118	82.5	46.2	14.8	16.0	6.1	3.9	100	80-100t
DHD- 100N	147	85	142.5	102.0	59.6	15.6	22.5	7.8	7	200	125-350t
DHD- 200N	294	135	163.0	123.0	73.2	19.0	25.5	10.4	11	300	350-600t
DHD- 400N	588	235	199.0	149.8	89.5	21.7	32.0	11.4	20	700	600-1060t
DHD- 560N	824	250	223.5	149.8	89.5	21.7	32.0	11.4	20	700	1060-1360t
DHD- 800N	1177	459	325.6	149.8	89.5	21.7	32.0	11.4	25	700	1360-1480t
DHD- 1000N	1471	480	360.6	149.8	89.5	21.7	32.0	11.4	25	700	1480-3200t

REMARKS

Specific gravity(Granular)≒0.68
Approx. Weight doesn’t contain mounting flange
Dimension: A(height contains mounting flange), B(width), C(width of hopper), D(height of mounting flange), E(width of mounting flange), F(diameter of material inlet port)
We reserve the right to change specifications without prior notice.
