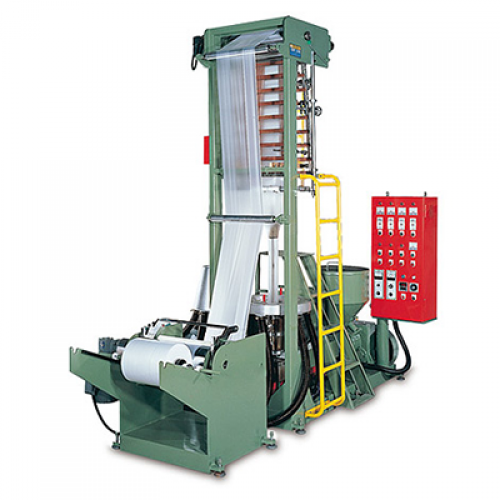

HDPE High Speed Plastic Inflation Machine － LCH-35

HDPE High Speed Plastic Inflation Machine － LCH-35
Classification : Blow Molding Machine
LIEN CHINY ENTERPRISE CO., LTD.
LIEN CHINY ENTERPRISE CO., LTD.
Country: Taiwan
Phone: 886-4-22611341
Fax: 886-4-22612962
Contact Person: Rucy Yang
Inquiry Now
MODEL LCH-35
SUITABLE MATERIAL HDPE
FILM THICKNESS 0.008-0.10 mm
FILM WIDTH RANGE 450 mm
FILM OUTPUT 10-28 kgs/hr
EXTRUDER UNIT
SCREW DIAMETER/TYPE Ø35mm
SCREW L/D RATIO 26:1
HEATING CAPACITY 5.7 kw
AUTO THERMO CONTROL 3 zone
BARREL COOLING FAN 1/8 hp×1
DRIVING MOTOR VS 15 HP
DIE UNIT
DIE DIAMETER Ø50/80 mm
AIR RING DIAMETER Ø120 mm
HEATING CAPACITY 4.6 kw
AUTO THERMO CONTROL 1 zone
COOLING BLOWER 3 HP
TAKE-UP UNIT
TAKE-UP ROLLER 500 mm
EFFECTIVE WIDTH 400 mm
TAKE-UP MOTOR AC 1/2 HP
TAKE-UP SPEED 85 m/min
ELEVATING MOTOR
WINDING UNIT
ROLLER WIDTH 500 mm
WINDING WIDTH 400 mm
WINDING MOTOR DC 1/2 HP
MACHINE DIMENSION 350×260×310 cm
