Patented Housing Desiccant Rotor Dehumidifying Dryer (DHML)

Classification : Drying & Dehumidifying System

YANN BANG ELECTRICAL MACHINERY CO., LTD.

Country: Taiwan

Phone: ENGLISH: 886-4-2271-0000 | 中文：886-4-22716999

Fax: 886-4-2271-1988

Contact Person: Bunny Tsai

Video Inquiry Now

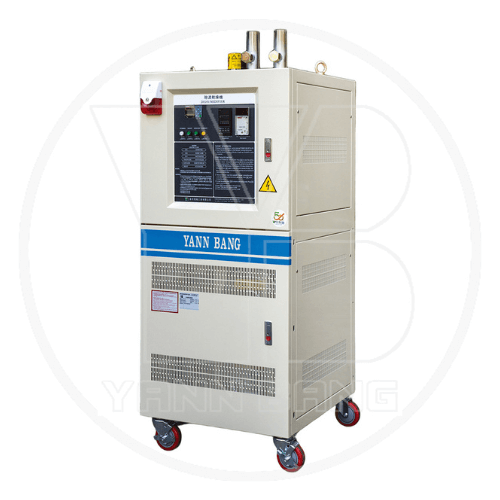

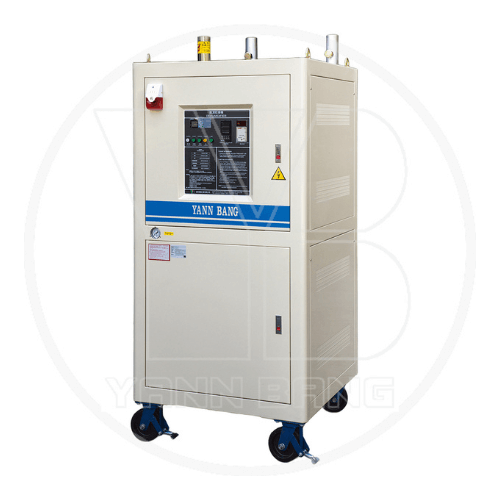

Patented Housing Desiccant Rotor Dehumidifying Dryer (DHML)

1. Unique design of insulated desiccant rotor system.

2. Efficient and energy saving design of exclusive rotation mechanism for the rotor & desiccant chambers.

3. Easy-load design for desiccant replacement.

4. No pneumatic valves necessary to control the air flow between areas.

5. Accurate PID temperature controller.

6. Ideally design for PET preform systems.

7. Intelligent Microprocessor Control and premium overheat protector

8. Energy saving heater and unique design for saving electricity.

9. Well designed Solid State Relay (SSR) and protective devices.

10. Obtained numerous domestic and oversea patents of Japan, the United States, Germany, Taiwan and China.

Multi-function Dehumidifying Dryer
Model	Frequency	Air Flow (m³/hr)	Drying Blower (kw/hp)	Reg. Fan Motor (kw)	Reg. Heater (kw)	Total Load (kw)	Air Piping (inch)	Cooling Water Required (1/min)	Dimension(WxDxH) (cm)	Approx. Weight (kg)	Suitable Dryers
DHML-1	60HZ	100	0.75/1	0.18	4.5	5.625	2	20	60x86x168	230	DHD-100
	50HZ	80
DHML-2	60HZ	260	1.75/2.5	0.18	7.8	9.675	2.5	25	87x106x198	420	DHD-200
	50HZ	220
DHML-3	60HZ	390	2.2/3	0.18	7.8	10.375	3	25	87x106x198	470	DHD-400
	50HZ	330
DHML-5	60HZ	390	3.75/5	0.375	9.5	13.625	3.5	32	125x145x227	640	DHD-560
	50HZ	330
DHML-7.5	60HZ	660	5.5/7.5	0.375	9.5	15.5	4.5	32	126x145x235	720	DHD-800
	50HZ	600
DHML-10	60HZ	720	7.5/10	0.75	9.5	20.25	6	40	175x180x268	820	DHD-1000
	50HZ	660
DHML-15	60HZ	1440	11.25/15	0.75	16	27	6	40	175x180x268	980	DHD-1500
	50HZ	1140
DHML-20	60HZ	1440	15/20	0.75	16	30.75	8	50	175x180x268	1180	DHD-2000
	50HZ	1140

REMARKS

We reserve the right to change the technical data without prior notice.
Customized specifications are available upon your early inquiry.
If your Dehumidifying Dryer works with more than one suction hopper, suggest to upgrade one level of your blower.
