Rubber Injection Molding Machine - Direct Clamping JD-RH series

Classification : Rubber Injection Molding Machine
JING DAY MACHINERY INDUSTRIAL CO., LTD.
JING DAY MACHINERY INDUSTRIAL CO., LTD.
Country: Taiwan
Phone: 886-6-2320999
Fax: 886-6-2325333
Contact Person: Louis Tsai
Blog Inquiry Now

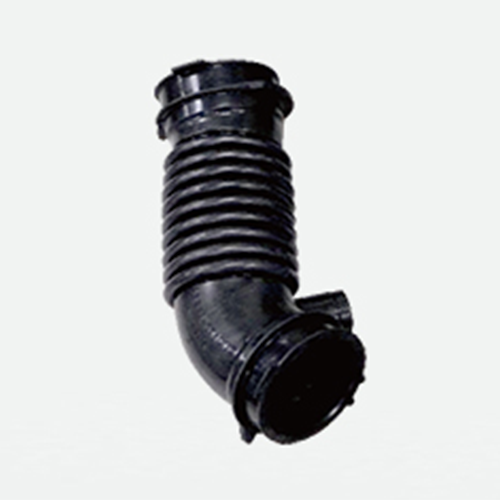

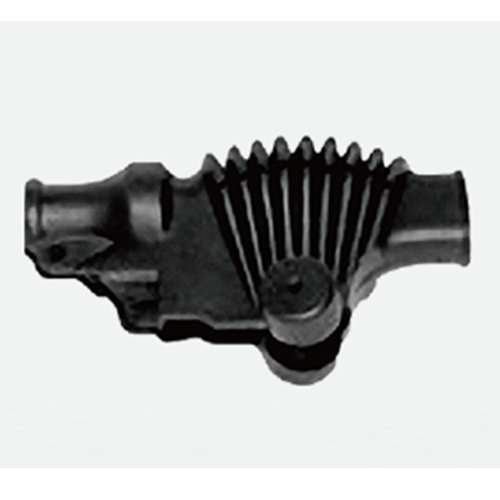

  • Machine for natural, synthetic, oil resistant,heat resistant and reclaimed rubber.
  • High bed structure with direct clamping.
  • PLC and HMI functional control as standard specification.
  • Direct and indirect clamping structure.
  • Specialized nozzle design to prevent material overflow.
  • Specialized feeding device.

MODEL JD-RH 65T JD-RH 150T JD-RH 200T JD-RH 260T JD-RH 300T JD-RH 400T JD-RH 500T JD-RH 800T
Shot Volum c.c. 300 / 500 500 /1000 1000 / 1500 1500 / 2000 / 2500 2000 / 2500 / 3000 2500 / 3000 / 4000 3000 / 4000 / 5000 7000 / 10000 / 12000
Injection Pressure kgf / cm² 1600 1600 1600 1600 1600 1600 1600 1600 / 1100 /1100
Injection Cylinder Pressure kg / cm² 150 150 / 140 140 / 150 150 150 / 150 / 140 150 / 140 / 170 140 / 170 / 150 150
Injection Rate c.c. / sec 65 65 70 / 75 100 100 / 100 / 120 160 / 150 / 180 150 / 180 / 160 270 / 380 / 380
Screw Diameter mm 32 45 45 45 45 45 50 65
Strip Dimension (T x W) mm 6 x 30 10 x 60 10 x 60 10 x 60 10 x 60 10 x 60 10 x 60 10 x 60
Clamping Force ton 65 150 200 260 300 400 500 800
Plate Size mm 350 x 380 360 x 510 480 x 500 550 x 620 520 x 580 / 520 x 800 580 x 620 600 x 650 650 x 730 650 x 730 800 x 900 800 x 850 800 x 1000
Piston Diameter mm 200 310 355 400 430 500 560 700
Piston Stroke mm 380 420 560 480 560 420 600 600 630 700 800
Space Between Tie Bar mm 430 x 200 550 x 300 575 x 210 675 x 365 645 x 275 660 x 350 695 x 295 795 x 455 780 x 440 970 x 580 915 x 485 1110 x 630
Oil Hydraulic System HP 7.5 10 15 20 20 / 20 / 25 30 / 30 / 40 30 / 40 / 40 50
Hot Oil Cycling Motor kw 0.5 * 2 0.5 * 2 0.5 * 2 0.5 * 2 0.5 * 2 0.5 * 2 0.5 * 2 0.5 * 3
Platen Heating Capacity kw 7.6 10 15 20.8 20 21 25 25.8 25.8 35.6 35.6 Steam / Coal Oil
System Pressure kg / cm² 210 210 210 210 210 210 210 210
Oil Tank Capacity liters 250 360 370 470 560 600 890 1000
Machine Dimensions mm 1300 x 900 x 2850 2550 x 2000 x 2450 2550 x 1880 x 3880 2830 x 2000 x 3940 2950 x 2070 x 3890 3120 x 2600 x 4160 3050 x 2700 x 5190 3040 x 2390 x 4080 3040 x 2390 x 4080 3420 x 2780 x 5520 3240 x 3630 x 5520 3700 x 3640 x 6930
Machine Weight (Approx) kg 4100 5500 6200 6500 8000 8100 8600 11000 11000 12500 14500 15580
MOLD INSTALLATION & HEATING PLATE DIMENSION

MODEL JD-RH65T JD-RH150T JD-RH200T JD-RH260T JD-RH300T JD-RH400T JD-RH500T JD-RH800T
STROKE / DIMENSION 380 420 560 480 560 420 600 600 600 630 700 800
A (mm) 350 450 480 550 520 580 600 650 650 800 800 800
B (mm) 380 510 500 620 580 620 650 730 730 900 850 1000
C (mm) 610 780 800 930 910 930 960 1060 1060 1290 1270 1470
D (mm) 150 150 200 200 200 200 200 200 200 300 300 400
E (mm) - - 300 300 300 300 400 400 400 500 500 600
F (mm) 90 120 120 120 135 135 145 145 145 200 200 250
G (mm) 13 18 18 18 18 18 18 18 18 18 18 18
H (mm) 21 25 25 25 25 25 25 25 25 25 25 25
I (mm) 10 10 10 10 10 10 10 10 10 10 10 10
J (mm) 11 12 12 12 12 12
&am
