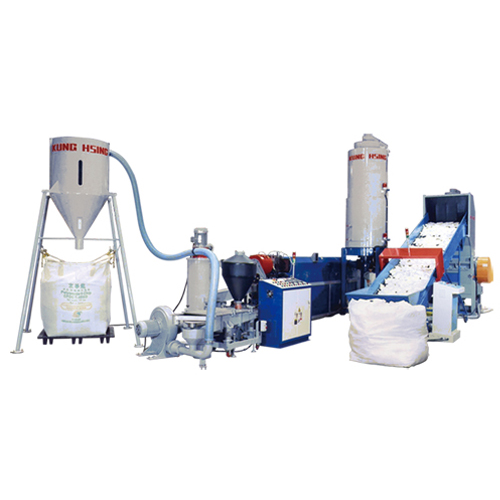

KS-DXS Series One Stage Die Face Cutter Water Cooling Side Force Type Plastic Pellet Making Machine

Classification : Plastic Recycling Machine and Washing Line

Country: Taiwan

Phone: 886-5-2374466

Fax: 886-5-2376971 /886-5-2381029

Contact Person: Kun Lin Tsai

MODEL		KS-DX85S	KS-DX100S	KS-DX120S	KS-DX150S
FEATURE	MATERIAL TO BE USED	HDPE, LDPE, LLDPE, PP (PRODUCTION OUTPUT IS ACCORDING TO MATERIAL)
FEATURE	MAX. EXTRUSION OUT PUT	330 kg/hr	400 kg/hr	500 kg/hr	800 kg/hr
FIRST EXTRUDER	SCREW DIA. (m/m)	85ø	100ø	120ø	150ø
	SCREW L/D	37:1
	CYLINDER COOLING BLOWER	1/2 HPx5	1/2 HPx6	1/2 HPx6	1/2 HPx7
	DRIVING MOTOR	75 HP	100 HP	150 HP	200 HP
	HEATER CAPACITY	45 KW	60 KW	75 KW	90 KW
	SCREEN CHANGER	HYDRAULIC TYPE
	TEMPERATURE CONTROL (points)	7	8	9	11
DIE	TYPE	ROUND TYPE
DIE	NUMBER OF EXTRUDIED STRIPS	MULTI HOLES
CUTTING & COOLING EQUIP	CUTTING DEVICE	DIE FACE CUTTER
	DRIVING MOTOR	2 HP	2 HP	3 HP	3 HP
	COOLING BLOWER	WATER RING (MADE OF STAINLESS STELL)
DRYING DEVICE	TYPE	STAINLESS STEEL CENTRIFUGE DRYER
DRYING DEVICE	DRIVING MOTOR	3 HP	3 HP	5 HP	7 1/2 HP
COLLECTING TANK	CONVEYOR	3 HP	3 HP	5 HP	7 1/2 HP
COLLECTING TANK	CYCLONE	1 SET
SCREW TYPE SIDE FORCE FEEDING DEVICE	SCREW MOTOR	10 HP	10 HP	10 HP	15 HP
	MIXER MOTOR	2 HP	2 HP	3 HP	3 HP
	WASTE COLLECTING STORAGE (kgs)	600	900	900	1200
SECONDARY EXTRUDER	SCREW DIA.(m/m)	85ø	100ø	120ø	150ø
	SCREW L/D	12:1
	CYLINDER COOLING BLOWER	1/2 HPx2	1/2 HPx2	1/2 HPx3	1/2 HPx3
	DRIVING MOTOR	25 HP	30 HP	40 HP	60 HP
	HEATER CAPACITY	25 KW	30 KW	38 KW	45 KW
	SCREEN CHANGER	HYDRAULIC TYPE
	TEMPERATURE CONTROL (points)	5	5	6	7
OPTIONAL DEVICE	SPIRAL TYPE FEEDING DEVICE FOR FILM SCRAP PROCESSING, WASTE STORAGE, CATERPILLAR TYPE AUTOMATIC CONVEYOR, CRUSHER, VACUUM SYSTEM FOR VENT (DEGASSING SYSTEM), VIBRATING SYSTEM, AGGLOMERATING MACHINE, METAL DETECTOR
