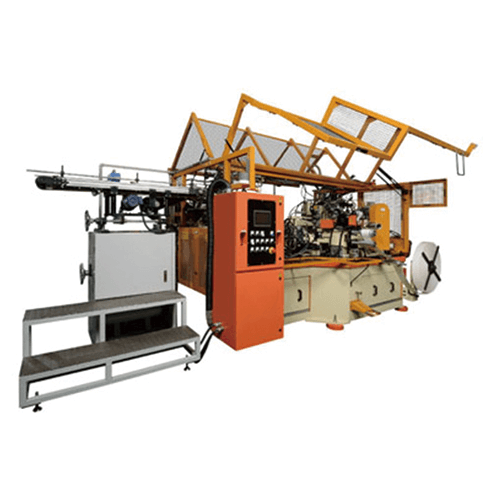

Classification : Paper Cup Machine
Country: Taiwan
Phone: 886-4-8534810
Fax: 886-4-8534847
Contact Person: Kenny Tan
Products | Hot or Cold Drink Cups; Vending Cups; Ice Cream or Instant Noodle Tubs |
Material In-feed | Blank Feed Sidewalls, Roll Feed Bottom Stock |
Forming Type | Single-wrap Two-piece |
Production Speed | Cup: Up to 150cpm; Bowl: Up to 135cpm; Oval or Others: Up to 115cpm |
Range of Cup Sizes | 75ml to 1000ml |
Drive | SIEMENS AC Variable Speed Drive |
Specification for Tubs | Top: 89mm ~ 142mm; Bottom: 64mm-113mm; Height: 75mm ~ 125mm |
Specification for Cups | Top: 54mm ~ 122mm; Bottom: 54mm-91mm; Height: 50mm ~ 178mm |
System Control | PLC Controls & amp; Touch Screen HMI |
Cups Productivity | Max. 9,900 cups / hr for one Machine |
Electric Requirement | 50-60Hz |
Compressed Air | 5.6kg / cm2 |
Machine Vacuum | 0.65kg / cm2 another 0.62kg / cm2 for Blank Feeder |
Water Required | 1.9 l / min @ 1.4kg / cm2 |
Space Requirement | 10.3M (L) x 3.5M (W) x 6M (H) |
Machine Weight | 8.5 Tons |
