Two Stage Force Side Feeding Plastic Recycling Machine (RECOi Series)

Classification : Plastic Recycling Machine

GENIUS MACHINERY CO., LTD.

Country: Taiwan

Phone: 886-4-2630-1621

Fax: 886-4-2630-1716

Contact Person: Peter Tsai

Inquiry Now

Increasingly Feeding
The force side feeding device creates a very stable feeding flow. With stable feeding, the main screw is always fully loaded with materials, which ensures the highest output performance. Increase the output capacity by up to 50%.

Unrivaled Degassing
Up to triple optional degassing zones equipped with vacuum pump. Maximize the degassing efficiency.

Exhaust-Free Construct
The unique development of two-stage extruder. A completely enclosed flow design, which prevents the molten polymer from releasing smoke.

Better Flexibility

Genius recycling specialist team provides customized recycling systems, flexible options from sorting, feeding, degassing, filtration, to storage and packing systems. According to the clients’ needs presenting a smart and reliable plant.

OUTSTANDING PERFORMANCE
Increase the output capacity up to 50%. Labor cost is reduces as only 1~2 operators are needed to operate the whole plant.

Model	RECO-100i	RECO-125i	RECO-135i	RECO-150i	RECO-175i
Main Extruder Screw	Ø100 mm	Ø125 mm	Ø135 mm	Ø150 mm	Ø175 mm
Main Extruder Drive	125HP (94KW)	175HP (131KW)	200HP (150KW)	250HP (188KW)	300HP (225KW)
Sub Extruder Screw	Φ125mm	Φ155mm	Φ155mm	Φ165mm	Φ200mm
Sub Extruder Drive	40HP(30KW)	75HP(56KW)	100HP(75KW)	100HP(75KW)	150HP(113KW)
Output	300 ~ 400 ↑ kg / hr	450 ~ 600 ↑ kg / hr	650 ~ 850 ↑ kg / hr	700 ~ 800 ↑ kg / hr	900 ~ 1100 ↑ kg / hr

The screw is made of wear resistance materials. Extend product durability.
Plastic films, clean and wet materials are preferable.
Low-noise operation and stable processing

Strand pelletizing

Strand pelletizing is suitable for high viscosity materials.

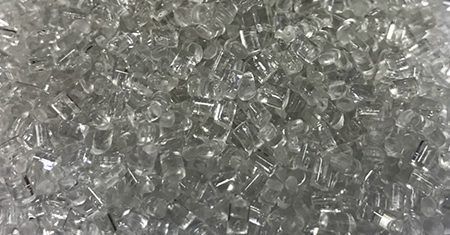

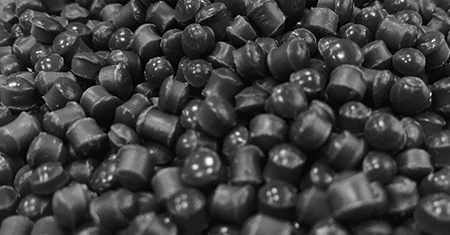

Individually extruded strands will be cooled down in a water cooling tank and then be cut by a pellet cutter.

Hot Die Face pelletizing

Die-face pelletizing is expected to reduce manpower cost.

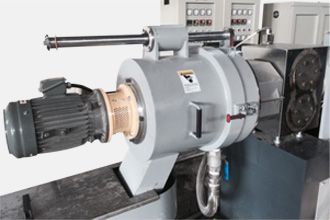

Pelletizing knife is an automatic adjustment design assuring a precise modification of the blades.

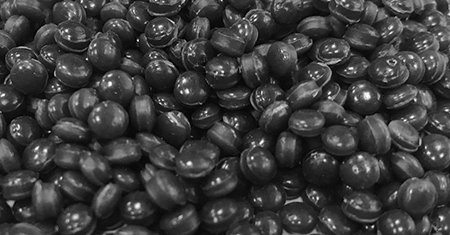

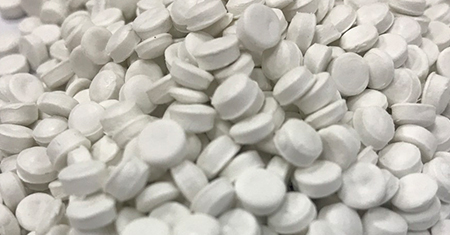

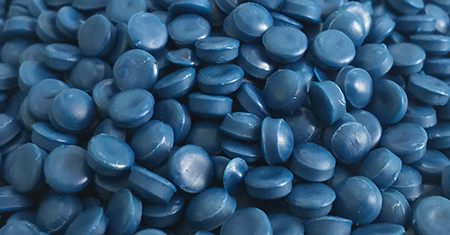

Die face cutting ensures high quality plastic pellets.

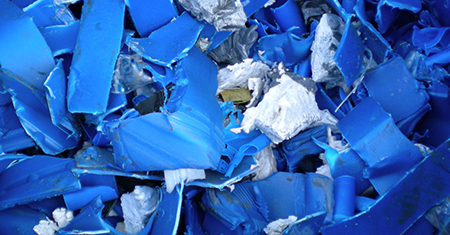

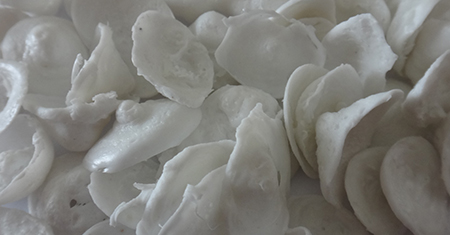

PET, PP, PS, PE, ABS, HIPS and more. Suitable for plastic rigid materials, including crushed bottles, crushed industrial waste.
