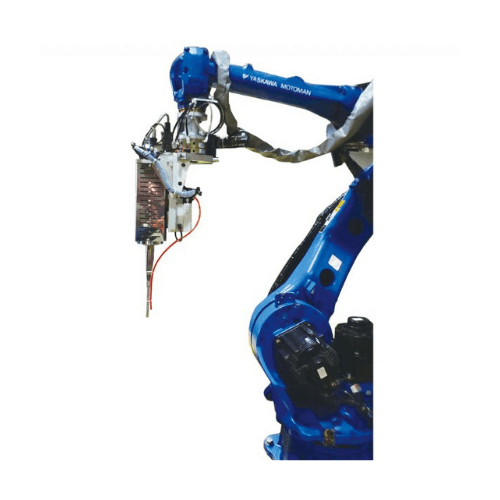

Ultrasonic welding module of Automation KWD(IGBT)

Classification : Ultrasonic Components

KING ULTRASONIC CO., LTD.

Country: Taiwan

Phone: 886-2-22980299

Contact Person: Mr. Chen

Inquiry Now

Automatic tuning (Frequency control)
Resonance frequency compensation during welding cycle.
Full bridge IGBT module are used in the generator to improve durability
PWM(Plus Width Modulation) amplitude control
PWM controls amplitude during start-up to prevent horn damage due to high voltage starts.
8 selective start-up settings for ultrasonic activation to match various requirements of horn's design
Protection against Ultrasonic frequency offset & high voltage overload.
Automatic frequency self-checking at start-up
Frequency compensation as horn's working temperature variation
LCD displays the frequency and percentage of amplitude
Two kind of welding mold, Time control mold & trigger mold

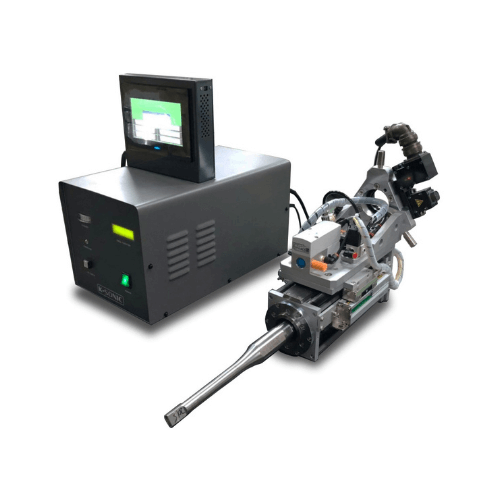

Simple operation, 7" touch panel , abnormal information text display

SERIALS		KWD(IGBT)
MODEL		Ultrasonic welding module of Automation
SPEC.	OUTPUT	2600W
	FREQ.	20KHz
	POWER	AC220V, 1P,10A, 50/60HZ
	AIR SOURCE	6㎏/㎝²
	MECHANICAL DIMENSION	480×220×400㎜(L×W×H)
	MECHANICAL WEIGHT	10.5㎏
	GENERATOR DIMENSION	525×271×271㎜(L×W×H)
	GENERTOR WEIGHT	16.5㎏
